SG系列擠壓式鋁格板
概述
標準板是鋁格板系列產品中的代板型，也是應用廣泛的一種板型，它是由標準扁鋁及鋁桿通過設備擠壓鎖固所形成的，其具有正常使用條件下不變形、不變色、耐候耐蝕性強、散熱性能好、免維護、使用壽命長等特點。其被廣泛應用于戶外條件下的圍墻、防護欄、外墻裝飾、城市排水系統蓋板以及對防滑要求不高的路面、平臺等場合的鋪設。
Aluminum grating from AIMI is swaged, in which the processing technology is researched and developed by ourselves. Swaged Aluminum Grating is with less weight, high intensity, no welding point, excellent corrosion resistance, low power consumption and pretty competitive price. It could be used as aluminum grate flooring, aluminum drainage grates, platform, walkway, floors, sunscreen louvers in kinds of areas, such as sewage and waste water treatment plants, marine super structure application, off-shore drilling rigs, seaport project, airport project, ocean project as well as civil building.
AIMI Swaged Aluminum Grating or swaged aluminum grate is light with no welding point and high intensity.
As a most common standard type, it is widely loved by customers. it provides plain and serrated surface for your choice, in which serrated grating is nonslip.

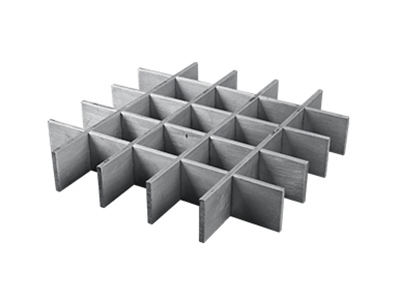

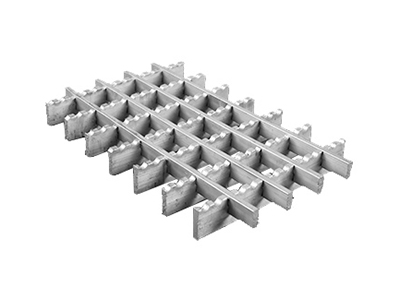

Plain grating is combined with plain flat bars and square bars, swage them together by deforming the square bars to make the swaged aluminum grating firmed. Serrated grating is combined with serrated flat bars and square bars with the same processing. It’s heavy duty grating, widely used as flooring as and windows, serrated grating is a good choice for non-slip environment. There are plenty of types for bearing bars, like 20*3, 25*3, 25.4*4.76, 25*5, 31.75*4.76, 32*5, 40*5, 50*3, 50.8*4.76, 57*6, 63.5*4.76, 75*3, 100*3, 100*36.... And space for bear bars are 30/40/50/60, space for cross bars are 50/100/200..
It could be made with an open end or banded end, in mill finish, clear anodized surface or powder coated surface according to customers’ requirements.
Serrated Bar Grating Types Available:
Flat surface grating with max length of 7500mm & max width 1200mm
Serrated surface grating with max length of 7500mm & max width 1200mm
Other sizes according to customers’ requirements
Heavy Duty Grating Finishes available:
Mill Finish
Clear Anodizing
Powder Coating
Pain Grating Applications:
Sun shade Building facade Fencing Sunscreens
Catwalk Walkway Floor grates Platform
Stair tread Truck grilles Decorative grilles Aluminum Drainage grates
